CS 12 24.2 Lecture 19

Model-View-Update II

Lecture 19 — CS 12 (Computer Programming II)
Second Semester, AY 2024-2025
Department of Computer Science
University of the Philippines Diliman

Lecture 19 outline

Dispatching on text input

Asynchronous operations

Dynamic DOM updates

Practice

Drawings and code from lecture

Motivating example

Task: Create an MVU web app that has two textboxes A and B on screen with text saying Please enter numbers.

Whenever text is entered into either A or B:

If the current text in both A and B can be parsed into integers by parseInt:

Sum their integer equivalents and replace the text on screen with the sum

Else:

Show Please enter numbers on screen

Lecture 19 outline

Dispatching on text input

Asynchronous operations

Dynamic DOM updates

Practice

Drawings and code from lecture

Motivating example

Task: Create an MVU web app that has the text (joke placeholder) and a button saying Fetch joke.

When the button is pressed:

The text on screen is replaced with Fetching joke…
The joke from the URL below is fetched
If fetching the joke is successful:

The joke should be displayed in place of Fetching joke…

Else:

The exception should be shown on screen

URL: https://v2.jokeapi.dev/joke/Programming?blacklistFlags=nsfw,racist,sexist,explicit&format=txt

How do we trigger a call to update when fetch resolves without violating separation of concerns?

ModelCmd

import { startModelCmd } from "cs12242-mvu/src"

// initModel: ModelCmd<Model, Msg>
// update: (msg: Msg, model: Model) => ModelCmd<Model, Msg>

startModelCmd(root, initModel, update, view)

export type Cmd<Msg> = {
  sub: (dispatch: (msg: Msg) => void) => Promise<void>
}

export namespace Cmd {
  export const ofSub = <Msg>(
    sub: (dispatch: (msg: Msg) => void) => Promise<void>,
  ): Cmd<Msg> => ({
    sub,
  })
}

export type ModelCmd<Model, Msg> =
  | Model
  | {
      model: Model
      cmd: Cmd<Msg>
    }

Lecture 19 outline

Dispatching on text input

Asynchronous operations

Dynamic DOM updates

Practice

Drawings and code from lecture

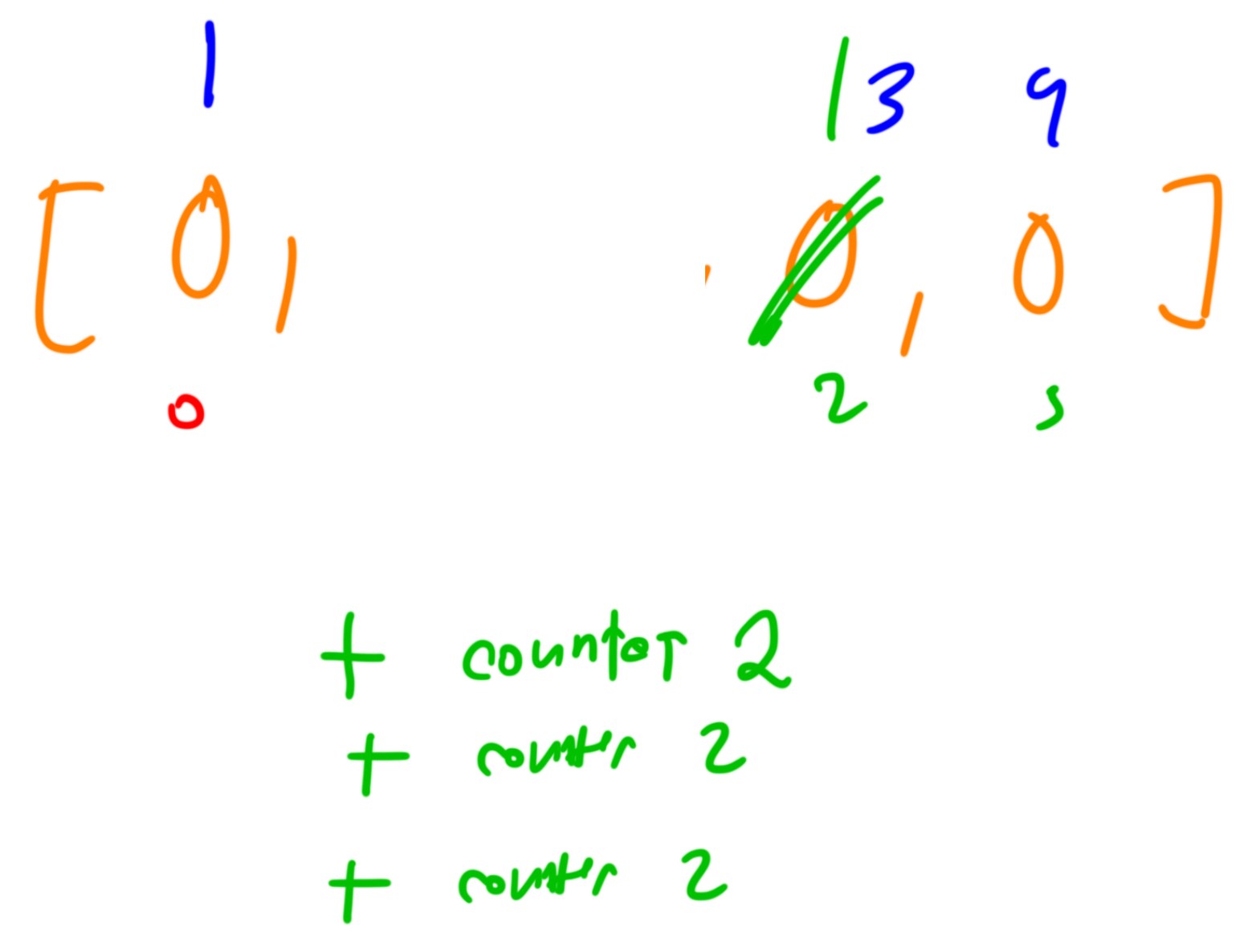

Example

New counter button: Creates new counter

Counters must be independent of each other

For each counter:

Count text: Shows current count
+ button: Increments count by 1
- button: Decrements count by 1
Reset button: Sets count to 0
Delete button: Removes counter

Lecture 19 outline

Dispatching on text input

Asynchronous operations

Dynamic DOM updates

Practice

Drawings and code from lecture

Multiplication game

Two players

Player 1 first; alternating turns

$k = 1$ initially
Set $n$ to integer within $[100, 10000]$

During each turn:

Current player clicks a button
Integer of button gets multiplied to $k$
Product is assigned to $k$
If $k \ge n$, current player wins

When game is ongoing, screen should show:

Current player, $k$, $n$
One button for integers from 2 to 9
History of player choices made so far

When a player wins:

Remove all elements on screen
Show winning player
Add a Play again button

Starts a new game

Data should be cleared
$n$ should be randomized again

Lecture 19 outline

Dispatching on text input

Asynchronous operations

Dynamic DOM updates

Practice

Drawings and code from lecture

Code from HRU (8:30 AM) session

import { Array, Match, HashMap, Schema as S, pipe } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  nextCounterId: S.Int,
  counters: S.HashMap({
    key: S.Int,
    value: S.Int,
  }),
})

const initModel: Model = Model.make({
  nextCounterId: 0,
  counters: HashMap.empty(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgNewCounter", {}),
  S.TaggedStruct("MsgIncrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDecrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgReset", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDelete", {
    id: S.Number,
  }),
)
const [
  MsgNewCounter, //
  MsgIncrement,
  MsgDecrement,
  MsgReset,
  MsgDelete,
] = Msg.members

const update = (msg: Msg, model: Model): Model =>
  Match.value(msg).pipe(
    Match.tag("MsgNewCounter", () =>
      Model.make({
        nextCounterId: model.nextCounterId + 1,
        counters: HashMap.set(model.counters, model.nextCounterId, 0),
      }),
    ),
    Match.tag("MsgIncrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) + 1),
        ),
      }),
    ),
    Match.tag("MsgDecrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) - 1),
        ),
      }),
    ),
    Match.tag("MsgReset", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.set(id, 0)),
      }),
    ),
    Match.tag("MsgDelete", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.remove(id)),
      }),
    ),
    Match.orElse(() => model),
    (x) => {
      console.log(JSON.stringify(x, null, 2))
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgNewCounter.make()),
        },
      },
      "New counter",
    ),
    drawCounters(model.counters, dispatch),
  ])

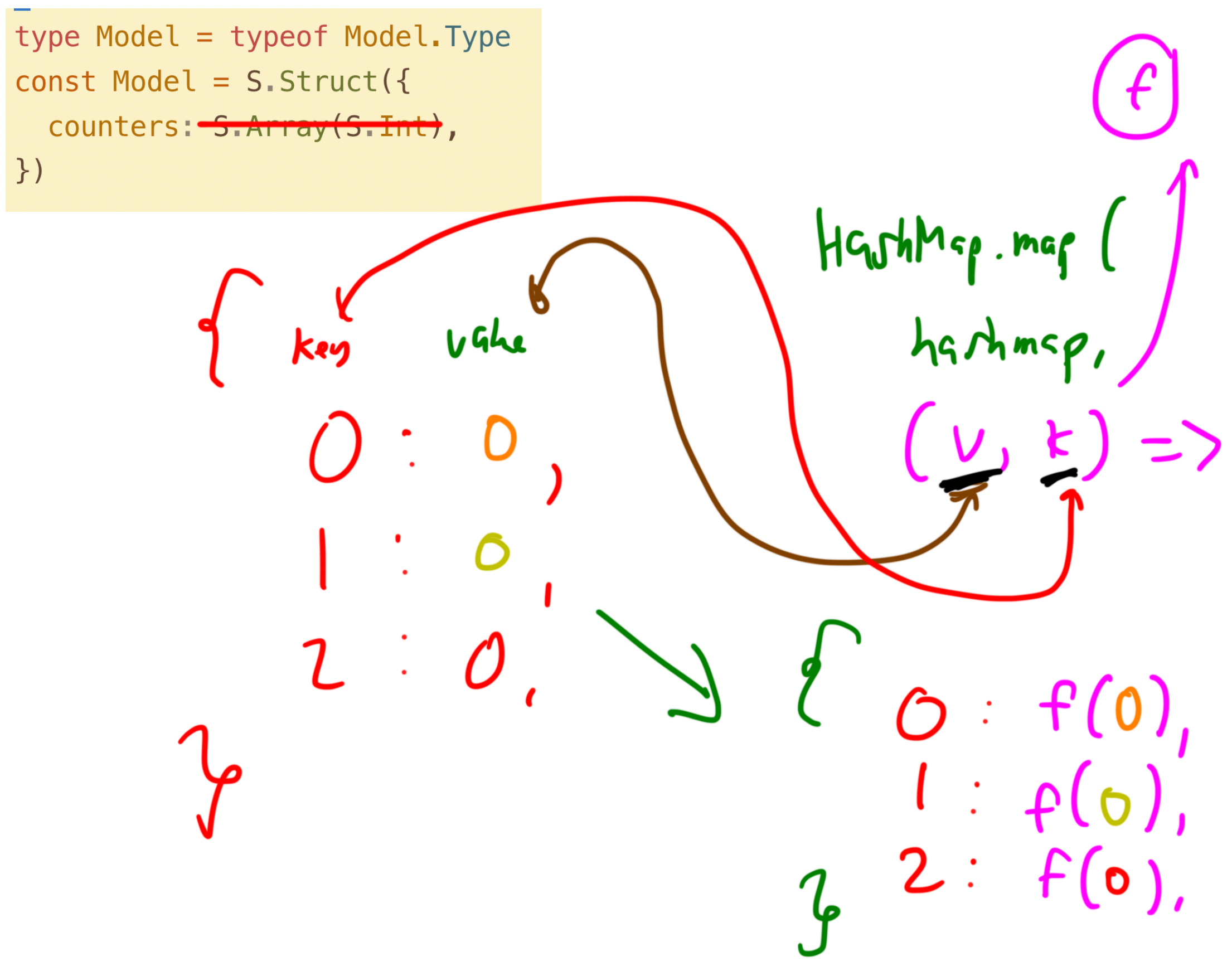

const drawCounters = (
  counters: HashMap.HashMap<number, number>,
  dispatch: (msg: Msg) => void,
) => {
  const x = pipe(
    counters,
    HashMap.map(drawCounter(dispatch)),
    HashMap.values,
    Array.fromIterable,
  )
  return h("div", x)
}

const drawCounter =
  (dispatch: (msg: Msg) => void) => (counter: number, key: number) =>
    h("div", [
      h("h3", `Counter ${key}`),
      h(
        "button",
        {
          on: {
            click: () =>
              dispatch(
                MsgIncrement.make({
                  id: key,
                }),
              ),
          },
        },
        "+",
      ),
      h("p", `${counter}`),
      h(
        "button",
        {
          on: {
            click: () =>
              dispatch(
                MsgDecrement.make({
                  id: key,
                }),
              ),
          },
        },
        "-",
      ),
      h("div", [
        h(
          "button",
          {
            on: {
              click: () =>
                dispatch(
                  MsgReset.make({
                    id: key,
                  }),
                ),
            },
          },
          "Reset",
        ),
      ]),
      h("div", [
        h(
          "button",
          {
            on: {
              click: () => dispatch(MsgDelete.make({ id: key })),
            },
          },
          "Delete",
        ),
      ]),
    ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HRU (8:30 AM) session

import { Match, Schema as S } from "effect"
import { Cmd, h, startModelCmd } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  joke: S.String,
  isFetching: S.Boolean,
})

const initModel = Model.make({
  joke: "",
  isFetching: false,
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgFetchJoke", {}),
  S.TaggedStruct("MsgGotJoke", {
    joke: S.String,
  }),
)
const [MsgFetchJoke, MsgGotJoke] = Msg.members

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgFetchJoke", () => ({
      model: Model.make({
        ...model,
        isFetching: true,
      }),
      cmd: Cmd.ofSub(async (dispatch: (msg: Msg) => void) => {
        try {
          const resp = await fetch(
            "https://v2.jokeapi.dev/joke/Programming?blacklistFlags=nsfw,racist,sexist,explicit&format=txt",
            //"https://flksdajf;lkadsjfk;ldsajf;lkadsjfa",
          )
          const data = await resp.text()
          dispatch(MsgGotJoke.make({ joke: data }))
        } catch (e) {
          console.log(`Error occurred: ${e}`)
        }
      }),
    })),
    Match.tag("MsgGotJoke", ({ joke }) =>
      Model.make({
        ...model,
        isFetching: false,
        joke,
      }),
    ),
    Match.exhaustive,
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "p",
      model.isFetching ? "Fetching joke..."
      : model.joke !== "" ? model.joke
      : "(joke placeholder)",
    ),
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgFetchJoke.make()),
        },
      },
      "Fetch joke",
    ),
  ])

const root = document.getElementById("app")!

startModelCmd(root, initModel, update, view)

Code from HUV (10 AM) session

import { Cmd, h, startModelCmd } from "cs12242-mvu/src"
import { Match, Schema as S } from "effect"

type Model = typeof Model.Type
const Model = S.Struct({
  joke: S.String,
  isFetching: S.Boolean,
  error: S.String,
  text: S.String,
})

const initModel = Model.make({
  joke: "",
  isFetching: false,
  error: "",
  text: "",
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgFetchJoke", {}),
  S.TaggedStruct("MsgGotJoke", {
    data: S.String,
  }),
  S.TaggedStruct("MsgError", {
    error: S.String,
  }),
  S.TaggedStruct("MsgType", {
    text: S.String,
  }),
)
const [MsgFetchJoke, MsgGotJoke, MsgError, MsgType] = Msg.members

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgFetchJoke", () => {
      return {
        model: Model.make({
          ...model,
          isFetching: true,
        }),
        cmd: Cmd.ofSub(async (dispatch: (msg: Msg) => void) => {
          //const resp = await fetch(
          //"https://v2.jokeapi.dev/joke/Programming?blacklistFlags=nsfw,racist,sexist,explicit&format=txt",
          //)
          try {
            const resp = await fetch("https://hellofasfkljads;lfjaslk")
            const data = await resp.text()

            dispatch(
              MsgGotJoke.make({
                data,
              }),
            )
          } catch (e) {
            dispatch(
              MsgError.make({
                error: `${e}`,
              }),
            )
          }
        }),
      }
    }),
    Match.tag("MsgGotJoke", ({ data }) =>
      Model.make({
        ...model,
        joke: data,
        isFetching: false,
      }),
    ),
    Match.tag("MsgError", ({ error }) =>
      Model.make({
        ...model,
        error,
      }),
    ),
    Match.tag("MsgType", ({ text }) =>
      Model.make({
        ...model,
        text,
      }),
    ),
    Match.exhaustive,
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "p",
      model.error !== "" ? `${model.error}`
      : model.isFetching ? "Fetching joke..."
      : model.joke === "" ? "(joke placeholder)"
      : model.joke,
    ),
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgFetchJoke.make()),
        },
      },
      "Fetch joke",
    ),
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgType.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h("h2", model.text),
  ])

const root = document.getElementById("app")!

startModelCmd(root, initModel, update, view)

Code from HUV (10 AM) session

import { Schema as S, Match, Option } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  text1: S.String,
  text2: S.String,

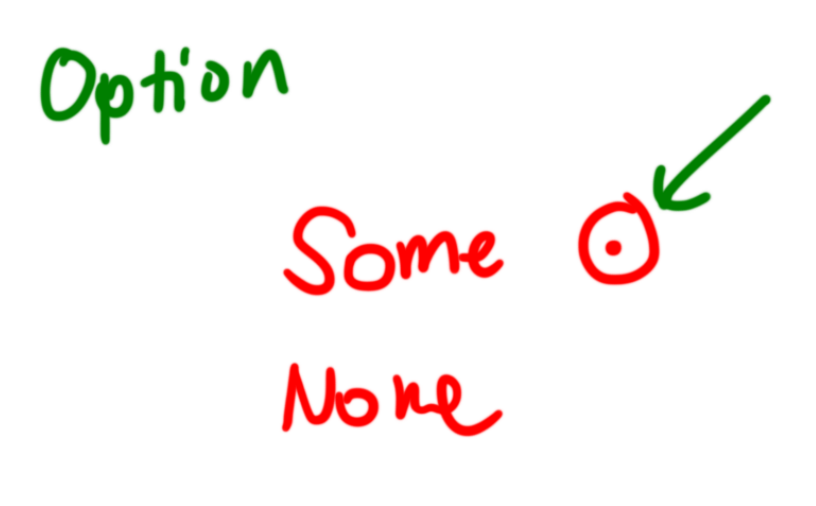

  sum: S.Option(S.Number),
})

const initModel = Model.make({
  text1: "",
  text2: "",
  sum: Option.none(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgTyped1", {
    text: S.String,
  }),
  S.TaggedStruct("MsgTyped2", {
    text: S.String,
  }),
)
const [
  MsgTyped1, //
  MsgTyped2,
] = Msg.members

const computeSum = (text1: string, text2: string) => {
  const a = parseInt(text1)
  const b = parseInt(text2)
  const sum = a + b

  return Number.isNaN(sum) ? Option.none() : Option.some(sum)
}

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgTyped1", ({ text }) =>
      Model.make({
        ...model,
        text1: text,
        sum: computeSum(text, model.text2),
      }),
    ),
    Match.tag("MsgTyped2", ({ text }) =>
      Model.make({
        ...model,
        text2: text,
        sum: computeSum(model.text1, text),
      }),
    ),
    Match.exhaustive,
    (x) => {
      console.log(JSON.stringify(msg))
      console.log(JSON.stringify(x))
      console.log()
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTyped1.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTyped2.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h(
      "h2",
      Match.value(model.sum).pipe(
        Match.tag("Some", ({ value }) => `${value}`),
        Match.tag("None", () => "sum should be here"),
        Match.exhaustive,
      ),
    ),
  ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HUV (10 AM) session

import { HashMap, Array, Match, pipe, Schema as S } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  nextCounterId: S.Number,
  counters: S.HashMap({
    key: S.Number,
    value: S.Number,
  }),
})

const initModel = Model.make({
  nextCounterId: 0,
  counters: HashMap.empty(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgNewCounter", {}),
  S.TaggedStruct("MsgIncrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDecrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgReset", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDelete", {
    id: S.Number,
  }),
)
const [
  MsgNewCounter, //
  MsgIncrement,
  MsgDecrement,
  MsgReset,
  MsgDelete,
] = Msg.members

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgNewCounter", () =>
      Model.make({
        ...model,
        nextCounterId: model.nextCounterId + 1,
        counters: HashMap.set(model.counters, model.nextCounterId, 0),
      }),
    ),
    Match.tag("MsgIncrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) + 1),
        ),
      }),
    ),
    Match.tag("MsgDecrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) - 1),
        ),
      }),
    ),
    Match.tag("MsgReset", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.set(id, 0)),
      }),
    ),
    Match.tag("MsgDelete", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.remove(id)),
      }),
    ),
    Match.exhaustive,
    (x) => {
      console.log(JSON.stringify(msg))
      console.log(JSON.stringify(x))
      console.log()
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgNewCounter.make()),
        },
      },
      "New counter",
    ),
    ...makeCounters(model.counters, dispatch),
  ])

const makeCounters = (
  counters: HashMap.HashMap<number, number>,
  dispatch: (msg: Msg) => void,
) =>
  pipe(
    counters,
    HashMap.map(makeCounter(dispatch)),
    HashMap.values,
    Array.fromIterable,
  )

const makeCounter =
  (dispatch: (msg: Msg) => void) => (counter: number, id: number) =>
    h("div", [
      h("h2", `Counter ${id}`),
      h(
        "button",
        {
          on: {
            click: () =>
              dispatch(
                MsgIncrement.make({
                  id,
                }),
              ),
          },
        },
        `+`,
      ),
      h("p", `${counter}`),
      h(
        "button",
        {
          on: {
            click: () =>
              dispatch(
                MsgDecrement.make({
                  id,
                }),
              ),
          },
        },
        `-`,
      ),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgReset.make({ id })),
          },
        },
        "Reset",
      ),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgDelete.make({ id })),
          },
        },
        "Delete",
      ),
    ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HWX-1 (1 PM) session

import { Match, Schema as S, Option } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  text1: S.String,
  text2: S.String,
  sum: S.Option(S.Number),
})

const initModel = Model.make({
  text1: "",
  text2: "",
  sum: Option.none(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgTyped1", {
    text: S.String,
  }),
  S.TaggedStruct("MsgTyped2", {
    text: S.String,
  }),
)
const [
  MsgTyped1, //
  MsgTyped2,
] = Msg.members

const computeSum = (text1: string, text2: string) => {
  const a = parseInt(text1)
  const b = parseInt(text2)
  const sum = a + b

  return isNaN(sum) ? Option.none() : Option.some(sum)
}

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgTyped1", ({ text }) =>
      Model.make({
        ...model,
        text1: text,
        sum: computeSum(text, model.text2),
      }),
    ),
    Match.tag("MsgTyped2", ({ text }) =>
      Model.make({
        ...model,
        text2: text,
        sum: computeSum(model.text1, text),
      }),
    ),
    Match.exhaustive,
    (x) => {
      console.log(x)
      console.log(msg)
      console.log()
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTyped1.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTyped2.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h(
      "p",
      Match.value(model.sum).pipe(
        Match.tag("Some", ({ value }) => `${value}`),
        Match.tag("None", () => "Please enter numbers"),
        Match.exhaustive,
      ),
    ),
  ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HWX-1 (1 PM) session

import { Match, Schema as S } from "effect"
import { Cmd, h, startModelCmd } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  joke: S.String,
  isFetching: S.Boolean,
  error: S.String,
})

const initModel = Model.make({
  joke: "",
  isFetching: false,
  error: "",
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgFetchJoke", {}),
  S.TaggedStruct("MsgGotJoke", {
    joke: S.String,
  }),
  S.TaggedStruct("MsgError", {
    error: S.String,
  }),
)
const [MsgFetchJoke, MsgGotJoke, MsgError] = Msg.members

const update = (
  msg: Msg,
  model: Model,
): Model | { model: Model; cmd: Cmd<Msg> } =>
  Match.value(msg).pipe(
    Match.tag("MsgFetchJoke", () => ({
      model: Model.make({
        ...model,
        isFetching: true,
      }),
      cmd: Cmd.ofSub(async (dispatch: (msg: Msg) => void) => {
        try {
          const resp = await fetch(
            //"https://v2.jokeapi.dev/joke/Programming?blacklistFlags=nsfw,racist,sexist,explicit&format=txt",
            "https://;alksjfl;ksdajf;ldaksfjasdlk;fjadsl;k",
          )

          const data = await resp.text()

          dispatch(
            MsgGotJoke.make({
              joke: data,
            }),
          )
        } catch (e) {
          dispatch(MsgError.make({ error: `Error: ${e}` }))
        }
      }),
    })),
    Match.tag("MsgGotJoke", ({ joke }) =>
      Model.make({
        ...model,
        isFetching: false,
        joke,
      }),
    ),
    Match.tag("MsgError", ({ error }) =>
      Model.make({
        ...model,
        error,
      }),
    ),
    Match.exhaustive,
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "p",
      model.error !== "" ? model.error
      : model.isFetching ? "Fetching joke..."
      : model.joke !== "" ? model.joke
      : "(joke placeholder)",
    ),
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgFetchJoke.make()),
        },
      },
      "Fetch joke",
    ),
  ])

const root = document.getElementById("app")!

startModelCmd(root, initModel, update, view)

Code from HWX-1 (1 PM) session

import { HashMap, Array, Match, Schema as S, pipe } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  nextCounterId: S.Number,
  counters: S.HashMap({
    key: S.Number,
    value: S.Number,
  }),
})

const initModel = Model.make({
  nextCounterId: 0,
  counters: HashMap.empty(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgNewCounter", {}),
  S.TaggedStruct("MsgIncrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDecrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgReset", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDelete", {
    id: S.Number,
  }),
)
const [
  MsgNewCounter, //
  MsgIncrement,
  MsgDecrement,
  MsgReset,
  MsgDelete,
] = Msg.members

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgNewCounter", () =>
      Model.make({
        ...model,
        nextCounterId: model.nextCounterId + 1,
        counters: HashMap.set(model.counters, model.nextCounterId, 0),
      }),
    ),
    Match.tag("MsgIncrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) + 1),
        ),
      }),
    ),
    Match.tag("MsgDecrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) - 1),
        ),
      }),
    ),
    Match.tag("MsgReset", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.set(id, 0)),
      }),
    ),
    Match.tag("MsgDelete", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.remove(id),
        ),
      }),
    ),
    Match.orElse(() => model),
    (x) => {
      console.log(JSON.stringify(msg))
      console.log(JSON.stringify(x))
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgNewCounter.make()),
        },
      },
      "New counter",
    ),
    showCounters(model.counters, dispatch),
  ])

const showCounters = (
  counters: HashMap.HashMap<number, number>,
  dispatch: (msg: Msg) => void,
) =>
  h(
    "div",
    pipe(
      HashMap.map(counters, showCounter(dispatch)),
      HashMap.values,
      Array.fromIterable,
    ),
  )

const showCounter =
  (dispatch: (msg: Msg) => void) => (counter: number, id: number) =>
    h("div", [
      h("h2", `Counter ${id}`),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgIncrement.make({ id })),
          },
        },
        "+",
      ),
      h("p", `${counter}`),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgDecrement.make({ id })),
          },
        },
        "-",
      ),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgReset.make({ id })),
          },
        },
        "Reset",
      ),
      h("button", {
        on: {
          click: () => dispatch(MsgDelete.make({ id })),
        },
      }, "Delete"),
    ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HYZ (4 PM) session

import { Schema as S, Match, Option } from "effect"
import { startSimple, h } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  textA: S.String,
  textB: S.String,
  sum: S.Option(S.Number),
})

const initModel = Model.make({
  textA: "",
  textB: "",
  sum: Option.none(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgTextA", {
    text: S.String,
  }),
  S.TaggedStruct("MsgTextB", {
    text: S.String,
  }),
)
const [MsgTextA, MsgTextB] = Msg.members

const computeSum = (textA: string, textB: string) => {
  const a = parseInt(textA)
  const b = parseInt(textB)
  const c = a + b

  return isNaN(c) ? Option.none() : Option.some(c)
}

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgTextA", ({ text }) =>
      Model.make({
        ...model,
        textA: text,
        sum: computeSum(text, model.textB),
      }),
    ),
    Match.tag("MsgTextB", ({ text }) =>
      Model.make({
        ...model,
        textB: text,
        sum: computeSum(model.textA, text),
      }),
    ),
    Match.exhaustive,
    (x) => {
      console.log(JSON.stringify(msg))
      console.log(JSON.stringify(x))
      console.log()
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTextA.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h("input", {
      type: "text",
      on: {
        input: (e) =>
          dispatch(
            MsgTextB.make({
              text: (e.target as HTMLInputElement).value,
            }),
          ),
      },
    }),
    h(
      "p",
      Match.value(model.sum).pipe(
        Match.tag("Some", ({ value }) => `${value}`),
        Match.tag("None", () => "Please enter numbers"),
        Match.exhaustive,
      ),
    ),
  ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Code from HYZ (4 PM) session

// Missing?

Code from HYZ (4 PM) session

import { HashMap, Array, Match, Schema as S, pipe } from "effect"
import { h, startSimple } from "cs12242-mvu/src"

type Model = typeof Model.Type
const Model = S.Struct({
  nextCounterId: S.Number,
  counters: S.HashMap({
    key: S.Number,
    value: S.Number,
  }),
})

const initModel = Model.make({
  nextCounterId: 0,
  counters: HashMap.empty(),
})

type Msg = typeof Msg.Type
const Msg = S.Union(
  S.TaggedStruct("MsgNewCounter", {}),
  S.TaggedStruct("MsgIncrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDecrement", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgReset", {
    id: S.Number,
  }),
  S.TaggedStruct("MsgDelete", {
    id: S.Number,
  }),
)
const [
  MsgNewCounter, //
  MsgIncrement,
  MsgDecrement,
  MsgReset,
  MsgDelete,
] = Msg.members

const update = (msg: Msg, model: Model) =>
  Match.value(msg).pipe(
    Match.tag("MsgNewCounter", () =>
      Model.make({
        nextCounterId: model.nextCounterId + 1,
        counters: pipe(model.counters, HashMap.set(model.nextCounterId, 0)),
      }),
    ),
    Match.tag("MsgIncrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) + 1),
        ),
      }),
    ),
    Match.tag("MsgDecrement", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(
          model.counters,
          HashMap.set(id, HashMap.unsafeGet(model.counters, id) - 1),
        ),
      }),
    ),
    Match.tag("MsgReset", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.set(id, 0)),
      }),
    ),
    Match.tag("MsgDelete", ({ id }) =>
      Model.make({
        ...model,
        counters: pipe(model.counters, HashMap.remove(id)),
      }),
    ),
    Match.orElse(() => model),
    (x) => {
      console.log(JSON.stringify(msg))
      console.log(JSON.stringify(x))
      return x
    },
  )

const view = (model: Model, dispatch: (msg: Msg) => void) =>
  h("div", [
    h(
      "button",
      {
        on: {
          click: () => dispatch(MsgNewCounter.make()),
        },
      },
      "New counter",
    ),
    showCounters(model.counters, dispatch),
  ])

const showCounters = (
  counters: HashMap.HashMap<number, number>,
  dispatch: (msg: Msg) => void,
) =>
  h(
    "div",
    pipe(
      HashMap.map(counters, showCounter(dispatch)),
      HashMap.values,
      Array.fromIterable,
    ),
  )

const showCounter =
  (dispatch: (msg: Msg) => void) => (counter: number, id: number) =>
    h("div", [
      h("h2", `Counter ${id}`),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgIncrement.make({ id })),
          },
        },
        "+",
      ),
      h("p", `${counter}`),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgDecrement.make({ id })),
          },
        },
        "-",
      ),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgReset.make({ id })),
          },
        },
        "Reset",
      ),
      h(
        "button",
        {
          on: {
            click: () => dispatch(MsgDelete.make({ id })),
          },
        },
        "Delete",
      ),
    ])

const root = document.getElementById("app")!

startSimple(root, initModel, update, view)

Model-View-Update II

Lecture 19 outline

Motivating example

Lecture 19 outline

Motivating example

ModelCmd

Lecture 19 outline

Example

Lecture 19 outline

Multiplication game

Lecture 19 outline

Code from HRU (8:30 AM) session

Code from HRU (8:30 AM) session

Code from HUV (10 AM) session

Code from HUV (10 AM) session

Code from HUV (10 AM) session

Code from HWX-1 (1 PM) session

Code from HWX-1 (1 PM) session

Code from HWX-1 (1 PM) session

Code from HYZ (4 PM) session

Code from HYZ (4 PM) session

Code from HYZ (4 PM) session

Drawing from lecture

Drawing from lecture

Drawing from lecture

Drawing from lecture

Drawing from lecture
